PSC2.400d

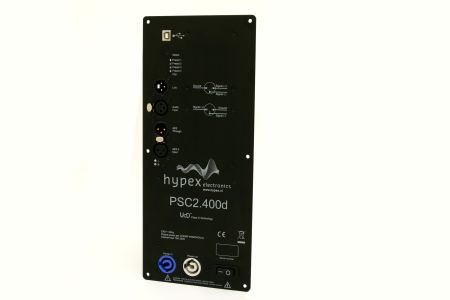

PSC2.400d The PSC2.400d is a plate amp for use in powered speaker systems with analog and digital input.
By it's four presets option, Powercon connection and balanced audio input it is a great product for universal use in professional audio but for home users as well.
The DSP gives you the possibility to use it for any kind of system, for example a 2 way active loudspeaker or a bridged subwoofer amplifier.




Specifications

GENERAL FEATURES:

-2x UcD400OEM plate amplifier
-Powered by SMPS400
-Four programmable presets
-Balanced audio input
-Balanced audio through loop
-Powercon power connection
-Two channel active filtering
-Fully user-configurable DSP filters
-Firmware update by USB
-Digital version with AES/EBU input


APPLICATIONS:

This module can be used for the following setups:
- Active 2-channel system
- Active power sub-woofer

And with 2 modules it is also possible to set up a 3-channel system with one module for the separate Subwoofer, and a second module for the top in a 2-channel system.

All setups are possible with analogue and digital audio inputs AES/EBU.


Also available:
Analog only version, PSC2.400


TECHNICAL DATA:
Supply voltage: 180-264Volt AC/50Hz (switch able to 90-132Volt 60Hz)
Output power LS1: 400W @ 4Ohms
Output power LS2: 400W @ 4Ohms


MECHANICAL DATA:
Dimensions: 142mm x 330mm x 55mm (W x H x D)
Weight: 1.1Kg
